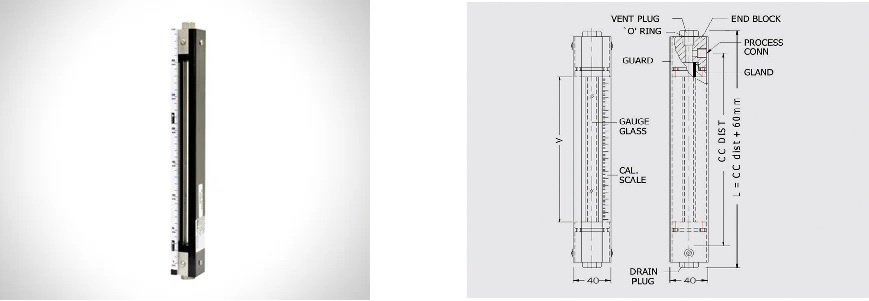

Mini Tubular Level Gauge

Mini Tubular Level Gauge (MTTG) is an economical and compact gauge designed for clear visual indication of liquid levels in small tanks. Its simple construction and reliable performance make it ideal for low-pressure and low-temperature applications.

Specifications

• Model: MTTG–N1XX
• Gauge Glass: Tempered Borosilicate Glass (16 OD × 3 mm Thickness)
• Range (CCD): 100 – 400 mm
• Visibility: CCD minus 55 mm
• Wetted Parts: SS304
• Process Connection: ¼” BSP (F)
• Packing: Neoprene (70°C) or Viton (100°C) – Specify
• Vent & Drain: ¼” BSP Plug
• Calibrated Scale: Polycarbonate (LC = 2 mm)
• Maximum Temperature: 100°C
• Maximum Test Pressure: 10 Kg/cm²

Applications

• Small storage tanks
• Process tanks
