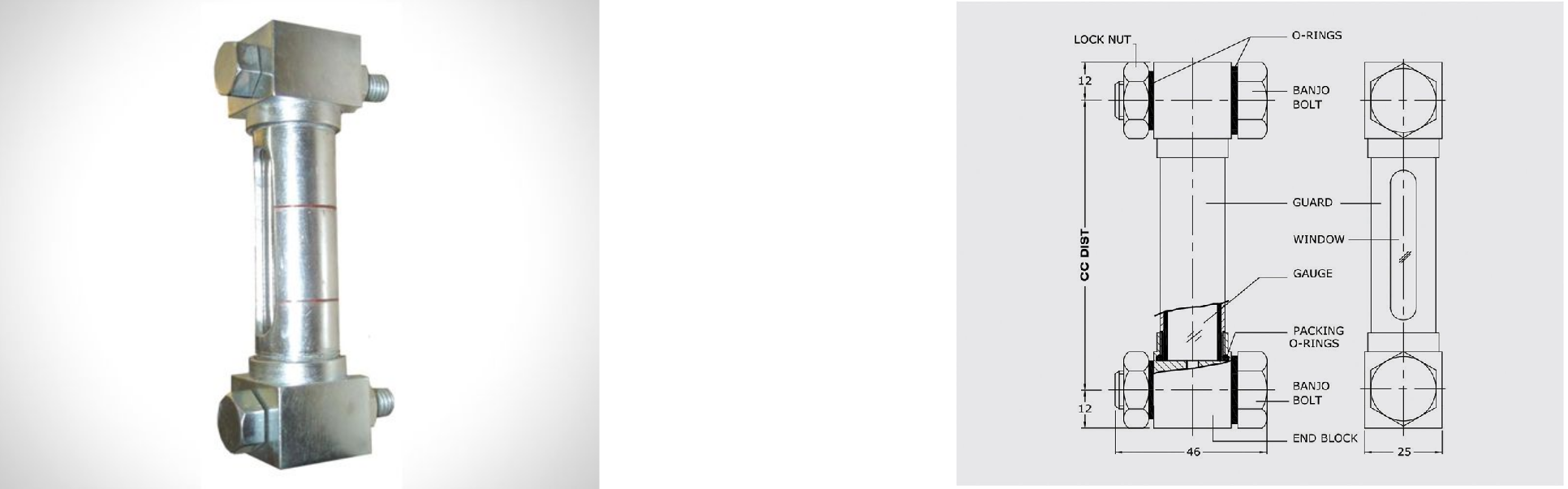

Oil Level Gauge

Oil Level Gauge (OLG) is an economical, rugged, compact, and reliable solution for visual indication of oil levels in small tanks. It is specially designed for low-pressure applications where simple and accurate level visibility is required.

Specifications

• Model: OLG – XXX
• Gauge Glass: Borosilicate Glass × 16 mm OD
• Range (CCD): 75 – 300 mm
• Visibility: CCD minus 40 mm
• Wetted Parts: CS
• Process Connection: M12 or M8 Banjo Bolts
• Packing: Neoprene (70°C) or Viton (100°C)
• Maximum Temperature: 100°C
• Maximum Test Pressure: 1 Kg/cm²

Applications

• Small storage tanks
• Process tanks
